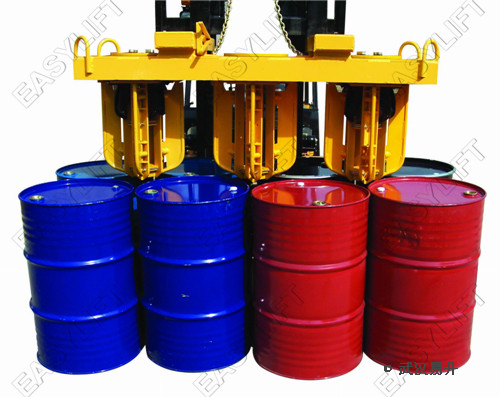

产品简介：

1. 采用美国技术生产，技术领先

2. 鹰嘴采用美国超强特殊材料制作，经久耐用

3. 全机械设计的叉车属具，采用自动夹紧、自动释放机构。(一上一下就可以自动完成桶的抓取和释放)

4. 单鹰嘴鹰头，适应各种直径的圆桶(有桶边、直上直下型)

5. 主要适用于托盘化的8个桶的装卸、 摆放整齐的桶的装卸，以及大搬运量的作业。

6. 对不平的路面有较好的适应性。

7. 桶夹配备导向调节板，可以帮助鹰头机构自动导向、下落。

8. 与叉车没有任何的液压或者电气连接。

9. 标准与叉车连接配置： 安全链

10. 8EL高八桶夹可以一次搬运1-8个桶。

11. 可对桶夹进行完全防爆改装，用于 EX 高要求防爆环境

采购注意事项：

1. 该系列桶夹一次只能搬运8个高度相同的圆桶。（桶的高度差不大于25mm，桶水平间隔距离不超过50mm都可以自动适应）

2. 门的高度以及空间高度： 抓桶后，叉车门架提高，能否自如进出仓库和车间的大门。

抓桶和放桶的时候，空间高度是否足够叉车门架提升。

3. 叉车货叉的升高： 采用标准3米升高的叉车，只可以在平地上面，进行2层桶的堆码和装卸。

采用标准3米升高的叉车，只可以对标准卡车进行1层桶的堆码和装卸。

4. 同步性问题： 由于该系列八桶夹由2个四桶夹组合起来的，所以保证2个四桶夹同时处于抓桶或者放桶的相同状态。

本公司在发货时，配备1个同步撬杠，只需要撬动其中1个井架就可以同步了。

八桶夹操作要领

1.使叉车门架直立，使桶夹的顶部与地面平行。这种水平状态能够使桶夹芯架和鹰嘴机构垂直起落，更容易工作，不会损坏桶。

2.要抓取油桶，叉车司机应该将货叉和桶夹提升到桶的上方，并将桶夹芯架对准八个桶的2个中心，慢慢落下货叉，使桶夹完全坐在桶的顶部，然后再提升货叉，鹰嘴就会自动抓住四个桶。

3.要释放油桶，简单地按相反的程序进行操作。将货叉和桶夹落下，这样油桶就会落到地面或者托盘上面，并注意一直下落使芯架完全下落坐在油桶上面。再次提升桶夹，油桶便会自动与桶夹脱离了。

Main Features：

1. Leading technology and patents fromUSA

2. Long life Eagle-Grip jaws made fromUSAspecial alloy material

3. All mechanical lift truck attachment that utilizes automatic clamping mechanisms.

(The pickup and release of drums can be automatically accomplished in a cycle of lifting and lowering of the forks.)

4. Single Eagle-Grip head, to handle drums in different diameters (with straight wall and top rings).

5. Ideal for high-volume handling and eight drums on pallets, or well-aligned drums.

6. Ideal for transporting drums on uneven floors and surfaces.

7. The unit has a floating head with centering guide which helps position the clamping mechanism into position.

8. No any hydraulic or electrical connections to the lift truck.

9. Standard connection to forklift： safety chain

10. The 8EL can handle from one to eight drums at a time.

11. The whole attachment can be custom-made,for explosion-proof (EX) areas.

Cautions：

1. The unit can handle eight drums only at the same heigh, but the unit can handle eight drums within25mmin height difference and eight drums apart within50mmsurface distance.

2. The height for doors and space: After the carriage is lifted and the drums are picked up, the forklift can go in and out freely through the doors of the warehouse and workshop.

The space should be high enough for the pickup and release of drums.

3. Max lifting height of a forklift: With a3Mlift forklift truck, the attachment can do two stacks of drums on the floor.

With a3Mlift forklift truck, the attachment can do just one stack only on regular trucks from the floor.

4． Synchronization: The 8EL drum handler is made up of two “4E” four-drum handlers, so it must be assured that the two four-drum handlers must be in the same pickup or release positions. The unit is equipped with a synchronization crowbar which is used to lever one of the spiders, to make the whole unit simultaneously in the same pickup or release positions.
